Introduction:
Vibratory Spiral Elevators are vertical conveyors that convey granular products & dry powders vertically upwards within process lines. The said equipment could be used for different purposes such as simple conveying, cooling of products prior to packaging or areas wherein the material is delicate.
How it works?

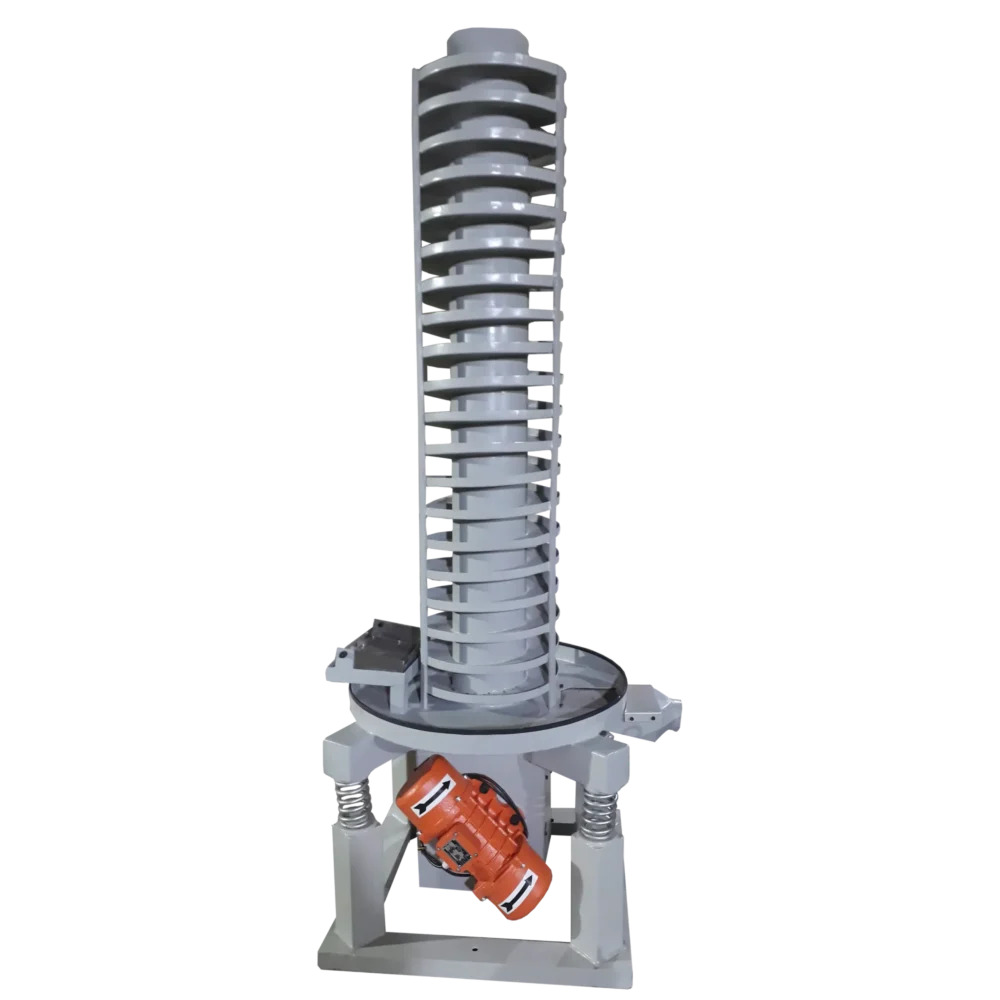

Unlike other conveyors which require chains, belts, pulleys, bearings or cables. The Vibratory Spiral Elevator only requires two Vibrator Motors to aid the flow of materials gently upwards. The material is conveyed based on the frequency & amplitude of vibration, the angle of impact & trough inclination.
Advantages:
- Minimum Installation Area.
- Easy To Clean.
- No Maintenance or part replacement required.
- Excellent for cooling applications due to longer retention time.
- Low Noise.
Application Areas:
- Snack Foods & Dry Fruits: Namkeens, Puffed Snacks, Seasoning, Nuts, Almonds, Chips, Cereals, Candies etc.
- Plastic Polymers & Additives: Masterbatch, PVC Granule, HDPE, LDPE, Other Types of Plastic Pellets etc.
- Petrochemicals & Abrasives: Grinding Grits, Silica & other powders & granules.
Capacity & Sizes
- Flight Size Available in ⌀ 600 mm, ⌀ 750 mm, ⌀ 900 mm.
- Material of Construction available in Mild Steel & Stainless Steel 304 / 316L.
- Capacity upto 2000 Kgs/hr based on the product & its characteristics.
- Max Lift of up to 20 Feet can be produced.
- Optional Upgrades Available: Rexine Velcro Enclosure or Polycarbonate Dust Enclosure to avoid dusting. Blower with Nozzles or Water Jacket for Forced Cooling.
